Robimat X-Series

Glass front vending machines with lift

Ein Mann der am Laptop Arbeitet vor einem Automaten
Ein Mann der am Laptop Arbeitet vor einem Automaten
Zwei Blaue Getränkedosen umgeben von Eiswürfeln
Zwei Blaue Getränkedosen umgeben von Eiswürfeln

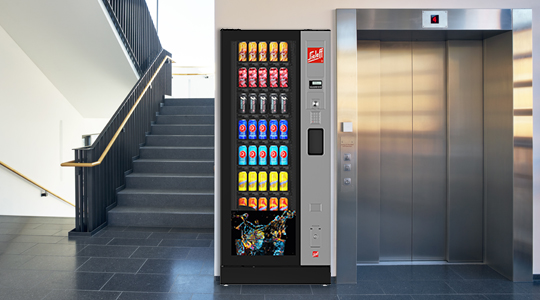

Ein Automat im Treppenhaus
Ein Automat im Treppenhaus
Gläser mit Wasser
Gläser mit Wasser

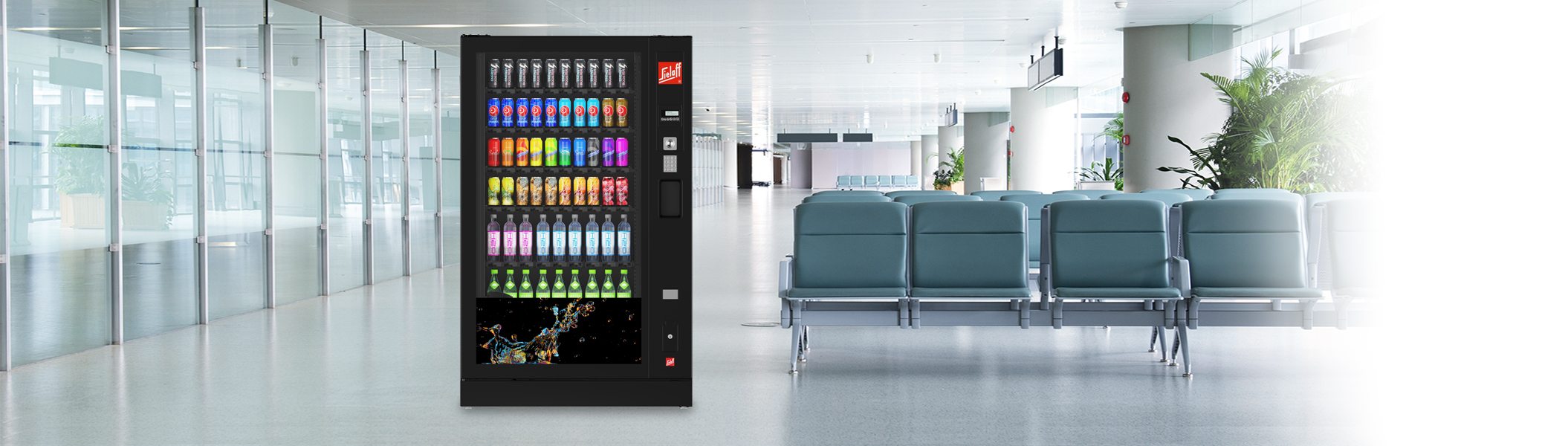

Spectacular on every site

The vending machine generation Robimat X-series is based on a straightforward principle: With its clean lines and high value, puristic design, we focus on the most important feature - delivering high turnover for you.

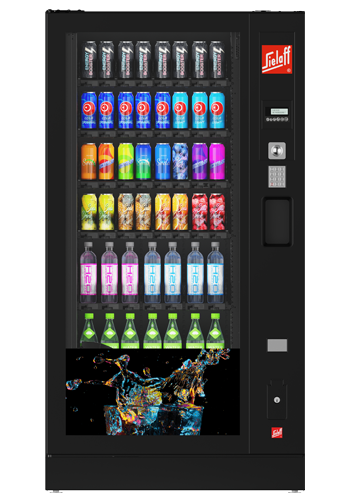

Ein Bild der Robiat X-Serie

Robimat X series variants

General Information
General Information
General Information

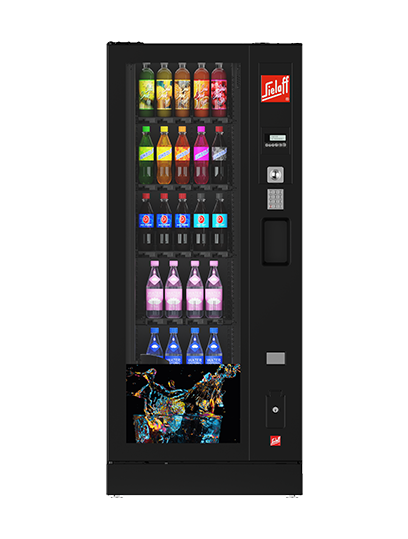

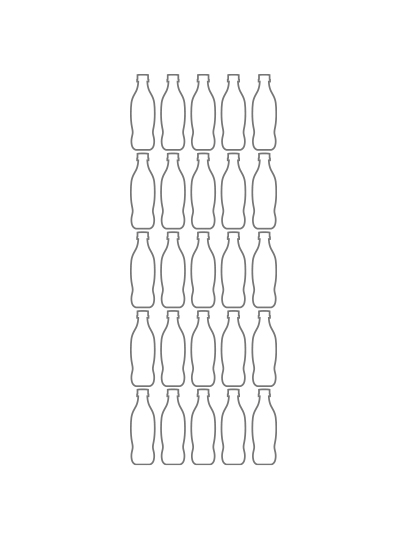

5 shelves, 5 selections
5 shelves, 5 selections
5 shelves, 5 selections
3 shelves, 5 selections; 2 shelves, 4 selections
3 shelves, 5 selections; 2 shelves, 4 selections
3 shelves, 5 selections; 2 shelves, 4 selections

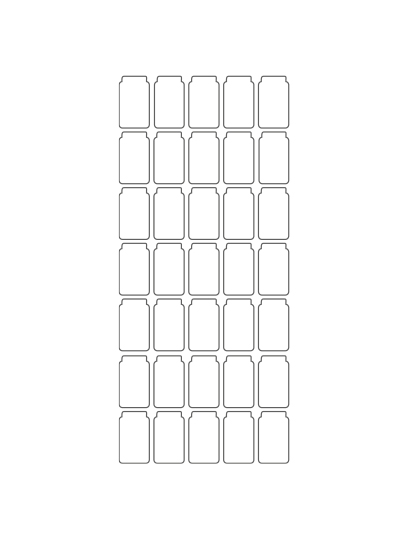

7 shelves, 5 selections
7 shelves, 5 selections
7 shelves, 5 selections
General Information
5 shelves, 5 selections
3 shelves, 5 selections; 2 shelves, 4 selections
7 shelves, 5 selections

Introduction

  • Vending of glass bottles, PET bottles and cans from 0.2 l to 0.6 l
  • For products ranging from 200 to 910 grams and with a diameter ranging from 53 mm to 72 mm
  • Max. bottle height: 270 mm
  • Up to 8 shelves
  • 4 to 5 selections per shelf
  • Modular design - especially easy to service and recycle
  • Also available in LM version: For example, for yoghurt, milk bottles, smoothies etc.
Download pdf

Dimensions: 1,830 x 790 x 880 mm (height x width x depth)*
Weight: approx. 300 kg (in standard configuration with 5 shelves)
Electrical connection values: 220 - 230 V / 50 Hz / min. 10 A
Power consumption: Approx. 500 W

*Deviations in the housing dimensions are possible due to add-on parts and accessories.



Operator panel

  • RB = Operator panel RAL painted
  • EB = Operator panel made from stainless steel

  • For cans and bottles up to Ø 72 mm
  • 20 types - approx. 225 drinks
  • Typical layout for PET-bottles up to 0.6 l, Ø 66 mm

  • 3 shelves for products up to Ø 66 mm
  • 2 shelves for products up to Ø 72 mm total
  • 23 types – approx. 237 drinks
  • Typical layout for slim / sleek cans mixed

  • For products up to Ø 66 mm
  • Max. height 146 mm
  • 35 types – approx. 385 drinks
  • Example of mixed layout
General Information
General Information
General Information

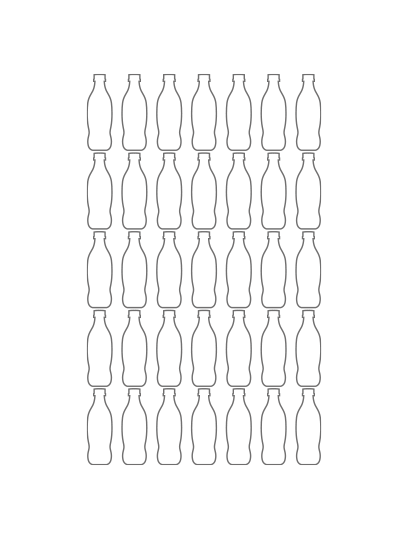

5 shelves, 35 selections
5 shelves, 35 selections
5 shelves, 35 selections

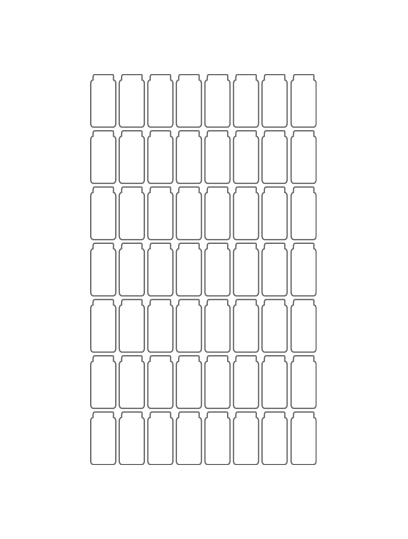

7 shelves, 56 selections
7 shelves, 56 selections
7 shelves, 56 selections

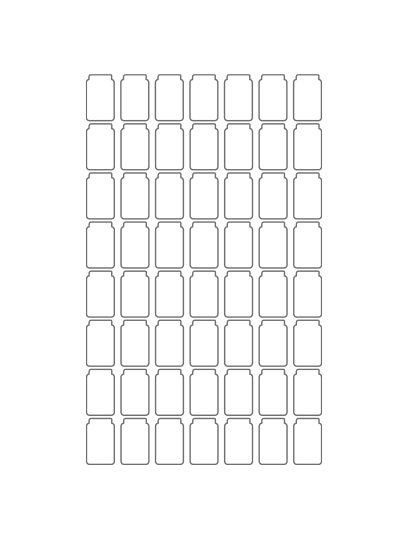

8 shelves, 56 selections
8 shelves, 56 selections
8 shelves, 56 selections
General Information
5 shelves, 35 selections
7 shelves, 56 selections
8 shelves, 56 selections

Introduction

  • Vending of glass bottles, PET bottles and cans from 0.2 l to 0.6 l
  • For products ranging from 200 to 910 grams and with a diameter ranging from 53 mm to 72 mm
  • Max. bottle height: 270 mm
  • Up to 8 shelves
  • 7 to 8 selections per shelf
  • Modular design - especially easy to service and recycle
  • Also available in LM version: For example, for yoghurt, milk bottles, smoothies etc.
Download pdf

Dimensions: 1,830 x 990 x 880 mm (height x width x depth)*
Weight: approx. 330 kg (in standard configuration with 5 shelves)
Electrical connection values: 220 - 230 V / 50 Hz / min. 10 A
Power consumption: 500 - 750 W (varies depending on the type of chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • RB = Operator panel RAL painted
  • EB = Operator panel made from stainless steel

  • For cans and bottles up to Ø 72 mm
  • Max. Height 240 mm
  • 35 types - approx. 315 drinks
  • Typical layout for PET-bottles up to 0.6 l

  • For cans and bottles up to Ø 62 mm
  • Max. Height 146 mm
  • 56 types - approx. 616 drinks
  • Typical layout for slim cans 0.25 l and sleek cans 0.33 l

  • For cans and bottles up to Ø 72 mm
  • Max. Height 116 mm
  • 56 types - approx. 504 drinks
  • Typical layout for standard cans up to 0.33 l
General Information
General Information
General Information
5 shelves, 45 selections
5 shelves, 45 selections
5 shelves, 45 selections

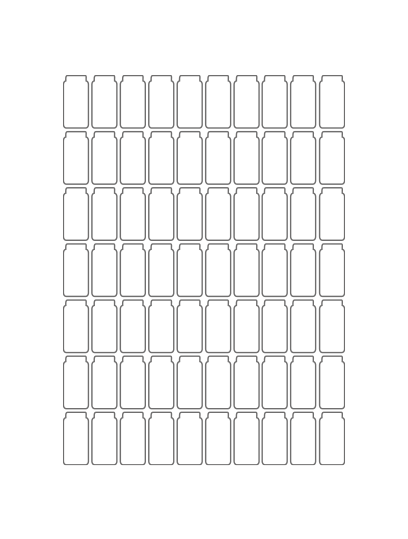

7 shelves, 70 selections
7 shelves, 70 selections
7 shelves, 70 selections
8 shelves, 72 selections
8 shelves, 72 selections
8 shelves, 72 selections
General Information
5 shelves, 45 selections
7 shelves, 70 selections
8 shelves, 72 selections

Introduction

  • Vending of glass bottles, PET bottles and cans from 0.2 l to 0.6 l
  • For products ranging from 200 to 910 grams and with a diameter ranging from 53 mm to 72 mm
  • Max. bottle height: 270 mm
  • Up to 8 shelves
  • 9 to 10 selections per shelf
  • Modular design - especially easy to service and recycle
  • Also available in LM version: For example, for yoghurt, milk bottles, smoothies etc.
Download pdf

Dimensions: 1,830 x 1,140 x 880 mm (height x width x depth)*
Weight: approx. 360 kg (in standard configuration with 5 shelves)
Connection values: 220 - 230 V / 50 Hz / min. 10 A
Power consumption: 500 - 750 W (varies depending on the type of chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • RB = Operator panel RAL painted
  • EB = Operator panel made from stainless steel

  • For cans and bottles up to Ø 72 mm
  • 45 types - approx. 405 drinks
  • Typical layout for PET-bottles up to 0.6 l

  • For cans and bottles up to Ø 62 mm
  • Max. Height 146 mm
  • 70 types - approx. 770 drinks ƒ
  • Typical layout for slim cans 0.25 l and sleek cans 0.33 l

  • For cans and bottles up to Ø 72 mm
  • Max. Height 116 mm
  • 72 types - approx. 648 drinks
  • Typical layout for standard cans up to 0.33 l

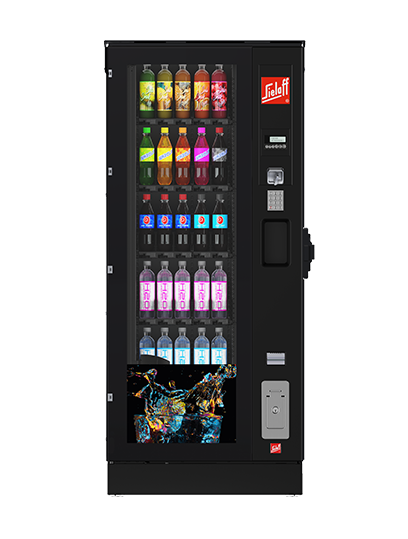

Robimat XS
Robimat XS
Robimat XS

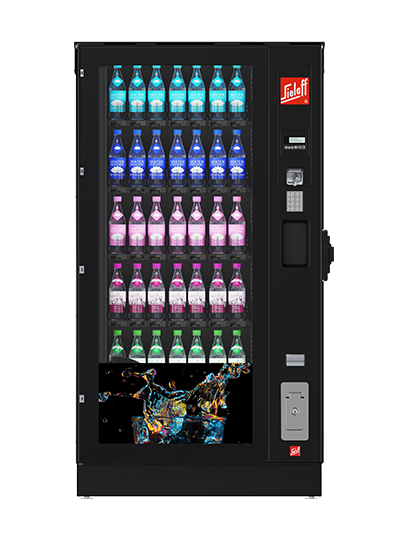

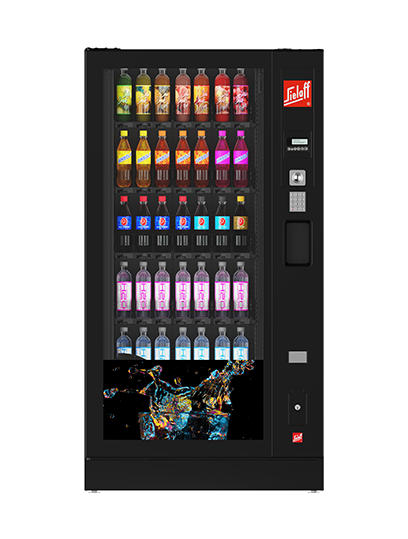

Robimat XM
Robimat XM
Robimat XM

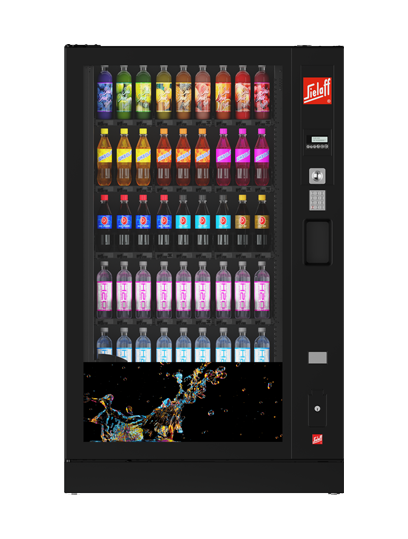

Robimat XL
Robimat XL
Robimat XL
Robimat XS
Robimat XM
Robimat XL

Introduction

  • Version for locations exposed to vandalism
  • Anti-vandalism panel
  • Coin insert slide and coin return drum
  • Reinforced locking lever protection
Download pdf

Dimensions: 1,844 x 850 x 880 mm (height x width x depth)*
Weight: approx. 320 kg (in standard configuration with 5 shelves)
Electrical connection values: 220 - 230 V / 50 Hz / min. 10 A
Power consumption: 500 - 750 W (varies depending on the type of chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • RB = Operator panel RAL painted
  • EB = Operator panel made from stainless steel

  • High security frame with side lock, so that the machine can be installed without a housing
  • Additional rear panel if the machine is not installed against a wall: greater security, extra branding area

Dimensions without anti-theft protection frame: 1,831 x 990 x 883 mm (height x width x depth)*
Dimensions with anti-theft protection frame: 1,844 x 1,051 x 883 mm (height x width x depth)*
Weight: Approx. 350 kg (in standard configuration with 5 shelves)
Electrical connection values: 220 - 230 V~ / 50 Hz / min. 10 A
Power consumption: 400 - 750 W (varies depending on the type of chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • RB = Operator panel RAL painted
  • EB = Operator panel made from stainless steel

  • High security frame with side lock, so that the machine can be installed without a housing
  • Additional rear panel if the machine is not installed against a wall: greater security, extra branding area

Dimensions without anti-theft protection frame: 1,832 x 1,148 x 951 mm (height x width x depth)*
Dimensions with anti-theft protection frame: 1,845 x 1,209 x 951 mm (height x width x depth)*
Weight: Approx. 380 kg (in standard configuration with 5 shelves)
Electrical connection values: 220 - 230 V~ / 50 Hz / min. 10 A
Power consumption: 400 - 750 W (varies depending on the type of chiller unit)

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • RB = Operator panel RAL painted
  • EB = Operator panel made from stainless steel

  • High security frame with side lock, so that the machine can be installed without a housing
  • Additional rear panel if the machine is not installed against a wall: greater security, extra branding area

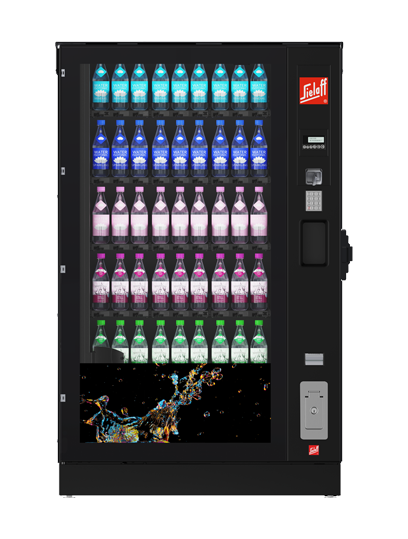

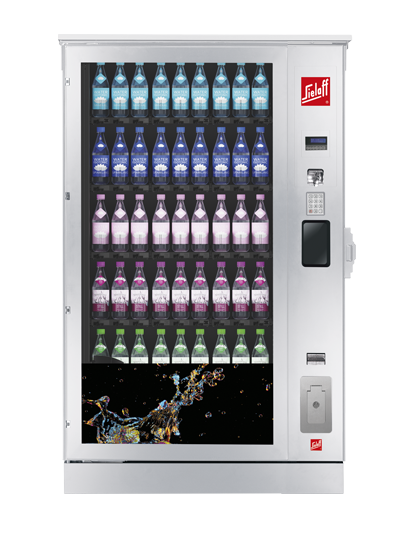

Robimat XL
Robimat XL
Robimat XL
Robimat XL

Introduction

  • Protection class: IP24
  • Winter resistant up to -20°C
  • Version for locations exposed to vandalism
  • Anti-vandalism panel
  • Rain shield and weatherproof protection
  • Coin insert slide and coin return drum
  • Reinforced locking lever protection
  • Security frame with side lock
  • Laminated safety glass panel with UV filter
  • Residual current circuit breaker
  • High performance chiller unit with heater with "frost monitoring function", so that the internal temperature is held above 0°C
  • Rear panel offers advertising opportunity
Download pdf

Dimensions: 1,856 x 1,178 x 1,210 mm (height x width x depth)*
Weight: approx. 459 kg (without products, depending on the layout)
Electrical connection values: 220 - 230 V / 50 Hz / min. 10 A
Power consumption: 750 W
Protection class: IP24

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Operator panel

  • RO = Operator panel RAL painted

Cabinet colors

  • Pure white (RAL 9010)
  • White aluminum (RAL 9006)
  • Jet black (RAL 9005)

  • Anti-vandalism panel
  • Rain shield and weatherproof protection
  • Coin insert slide and coin return drum
  • Reinforced locking lever protection
  • Security frame with side lock
  • Laminated safety glass panel with UV filter
  • Residual current circuit breaker
  • High performance chiller unit with heater with "frost monitoring function", so that the internal temperature is held above 0°C
  • Rear panel offers advertising opportunity
  • KESO

Optional

  • Impact protection made of 8 mm thick laminated safety glass instead of 12mm PC

Talent and technology

Energy

Energy

Energy

  • Energy-saving LED lighting on the inside
  • Energy-saving fans on the cooling unit
  • Insulating safety glass
  • Energy-saving mode reduces power consumption by increasing temperature and switching off the illumination
Learn more
Chiller unit

Chiller unit

Chiller unit

  • Low-maintenance, hermetically closed cooling system with an electronically controlled, high-performance push-in chiller unit
  • HC R-290 cooling agent with a GWP of 3
  • Optimum cooling of the interior by guided air flow from both sides
Learn more
Payment system

Payment system

Payment system

  • Easy integration of payment systems
  • MDB standard
  • Optional: EXECUTIVE

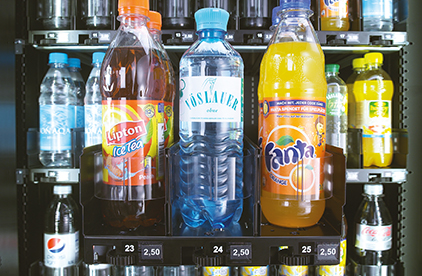

Product basket

Product basket

Product basket

  • Made from high-quality plastic
  • Removable with one hand and easy to clean
  • Dishwasher-safe

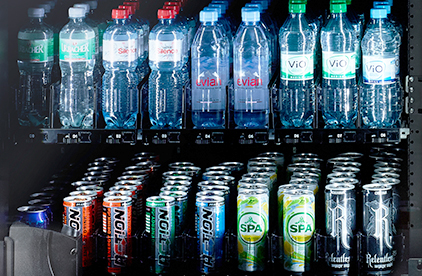

Product shelves

Product shelves

Product shelves

  • Split metal shelves for ergonomic filling with 7 or 9 selections by default
  • Optional: Shelves with 8 or 10 selections for slim products
  • Automatic recognition of product shelves
  • Upper product compartments tilt downwards for easier handling
  • Transparent product retainers for a clear view of the products
  • First-in-first-out principle

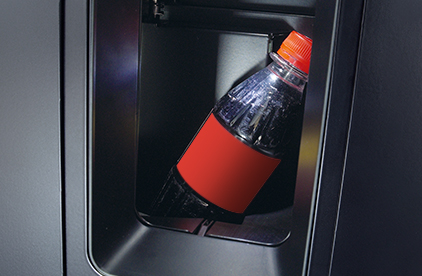

Product delivery unit

Product delivery unit

Product delivery unit

  • Quick and quiet product dispense under ten seconds
  • Virtually shake-free transportation of the products to the delivery unit
  • Sensor in the product basket monitors the vending process
  • Illuminated product delivery unit at ergonomic height
  • Products can be easily removed
