SiLine® HG TS-Series

Premium pleasure

Eine Frau die an einem Tisch Kaffee trinkt
Eine Frau die an einem Tisch Kaffee trinkt
Ein Gewürz und Hülsenfrüchte in zwei Schüsseln
Ein Gewürz und Hülsenfrüchte in zwei Schüsseln
Ein Automat vor einem Tresen
Ein Automat vor einem Tresen
Eine gefüllte Kaffeetasse
Eine gefüllte Kaffeetasse

Aesthetically pleasing

With its easy handling and operation, the SiLine® HG TS series appeals to all of the senses. Hygiene Always comes first with its glass front and capacitive buttons (HG TS7) or with a full-surface glass-fronted touch display (HG TS27).

The modern, appealing SiLine®-design enables the SiLine® HG TS series to integrate seamlessly into the SiLine® line of machines.

Ein Bild des SiLine HG TS

SiLine® HG TS series

Basis
Basis
Basis
Basis

General information

  • Ease to operate using 20 capacitive keys with large product decals
  • Product information and programming via 7" touch display
  • Large, open dispense outlet with optional RGB-user prompting
  • Dry sugar and stirrers
  • Innovative instant containers with SiTwist'n-Lock system
Download pdf

Dimensions:1,830 x 700 x 755 mm (height x width x depth)*
Weight:approx. 210 kg
Cup capacity:can dispense up to 180 cups per hour (varies depending on product and setting)
Electrical data:220 - 230 V / 50/60 Hz / min. 10 A
Power:2,3 kW
Water connection:John Guest

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Design panel

  • Design VA = Lower design panel made from stainless steel
  • Design RA = Lower design panel RAL painted

Housing colours

  • Jet black (RAL 9005)

Optional:
The standard design VA can be added with the design package A.
Design RA can be complemented with Design package A.


Design package A includes:

  • LED decoration stripes


All design variants can be found in the brochure.

Basis
Basis
Basis
Basis

General facts

  • Fits perfectly into a SiVend-Line
  • The "Trend" variant features an additional advertising panel
  • The operator module is on the right hand side and runs vertically to the base of the machine
  • Ease to operate using 20 capacitive keys with large product decals
  • Product information and programming via 7" touch display
  • Large, open dispense outlet with optional RGB-user prompting
  • Dry sugar and stirrers
  • Innovative instant containers with SiTwist'n-Lock system
Download pdf

Dimensions:1,830 x 700 x 755 mm (height x width x depth)*
Weight:approx. 210 kg
Cup capacity:can dispense up to 180 cups per hour (varies depending on product and setting)
Electrical data:220 - 230 V / 50/60 Hz / min. 10 A
Power:2,3 kW
Water connection:John Guest

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Front foot plate

  • RB = Lower design panel RAL painted

Housing colours

  • Jet black (RAL 9005)
  • White aluminum (RAL 9006)
  • Pure white (RAL 9010)

Design

  • additionally lower advertising panel

All design variants can be found in the brochure.

Basis
Basis
Basis
Basis

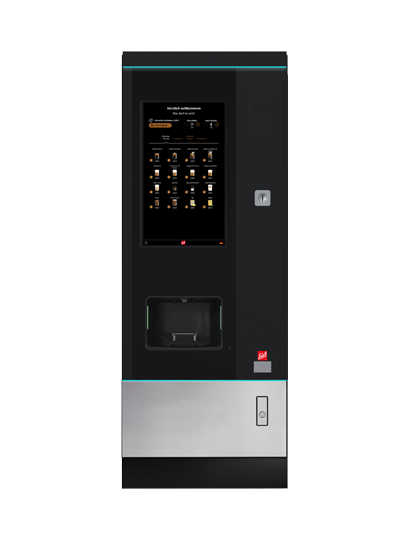

General information

  • Ease to operate using 27“ touchscreen behind full-surface glass front
  • Product descriptions possible for each selection
  • Presentation of consumer information such as ingredients, allergens or additional information
  • Large, open dispense outlet with optional RGB-user prompting
  • Dry sugar and stirrers
  • Innovative instant containers with SiTwist'n-Lock system
  • Configurable advertising space or Slideshow area for advertising videos and images
Download pdf

Dimensions:1,830 x 700 x 755 mm (height x width x depth)*
Weight:approx. 210 kg
Cup capacity:can dispense up to 180 cups per hour (varies depending on product and setting)
Electrical data:220 - 230 V / 50/60 Hz / min. 10 A
Power:2,3 kW
Water connection:John Guest

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Design panel

  • Design VA = Lower design panel made from stainless steel
  • Design RA = Lower design panel RAL painted

Housing colours

  • Jet black (RAL 9005)

Optional:
The standard design VA can be added with the design package A.
Design RA can be complemented with Design package A.


Design package A includes:

  • LED decoration stripes


All design variants can be found in the brochure.

Basis
Basis
Basis
Basis

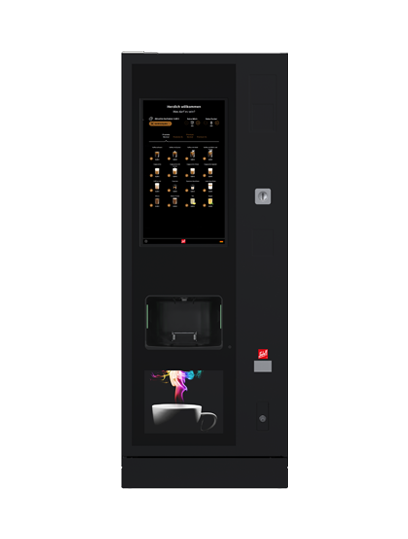

General information

  • Fits perfectly into a SiVend-Line
  • The "Trend" variant features an additional advertising Panel
  • Ease to operate using 27“ touchscreen behind full-surface glass front
  • Product descriptions possible for each selection
  • Presentation of consumer information such as ingredients, allergens or additional information
  • Large, open dispense outlet with optional RGB-user prompting
  • Dry sugar and stirrers
  • Innovative instant containers with SiTwist'n-Lock System
Download pdf

Dimensions:1,830 x 700 x 755 mm (height x width x depth)*
Weight:approx. 210 kg
Cup capacity:can dispense up to 180 cups per hour (varies depending on product and setting)
Electrical data:220 - 230 V / 50/60 Hz / min. 10 A
Power:2,3 kW
Water connection:John Guest

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Front foot plate

  • RB = Lower design panel RAL painted

Housing colours

  • Jet black (RAL 9005)
  • White aluminum (RAL 9006)
  • Pure white (RAL 9010)

Design

  • additionally lower advertising panel

All design variants can be found in the brochure.

Talent and technology

Espresso-Brewer

Espresso-Brewer

Espresso-Brewer

  • High-Tech-PEEK-Brewer
  • Coffee portions from 6-14g
  • Insulated stainless steel chamber
  • Double press
  • Micro-filter for crema
  • Sielaff pre-infusion technology - freely programmable
  • Software-monitored empty and full recognition
Espresso grinder

Espresso grinder

Espresso grinder

  • High performance grinder
  • Low-noise, high level grind efficiency
  • Tempered steel discs
  • Grind from espresso to French Press
  • Thermal monitoring to prevent damage due to foreign bodies
  • The ground beans are transferred directly from the grinder into the brewer via a funnel
Hot water system

Hot water system

Hot water system

  • Innovative water system: The temperature can be adjusted individually for each product and product component
  • 2.0 kW boiler, plus additional heating depending on the flow rate
  • Vane pump: 230V
  • Output: 100 l/h
  • Electronically-monitored water quantity delivery
  • All water-bearing components are insulated against heat loss
Instant container

Instant container

Instant container

  • Ingenious twist lock SiTwist'n-lock with coloured marking to show the individual positions: open/closed
  • Ergonomic filling process, simply tilt the individual instant container forwards
  • Standard size of the instant container: 5 litres
Product delivery unit

Product delivery unit

Product delivery unit

  • Large, open delivery outlet with light barrier and optional RGB user prompting
  • Fold-away cup table
  • Suitable for use with own cup and pot up to a height of:
    - max. 110 mm on the cup table
    - max. 170 mm with the cup table folded up
BAM dispense technology

BAM dispense technology

BAM dispense technology

  • Two cup dispense mechanisms (standard)
  • Cup dispense mechanism can be adjusted for 70 or 80 mm cup diameters
  • Adaptable cup catchers retain the various cups securely in the removal position
  • Up to 1,200 cup capacity
  • Selection-related programming of the respective cup dispense mechanisms
  • Different cup prices can be programmed
  • Different cup types (plastic, paper, re-usable)
