SiLine® HG TS27

Premium pleasure

Eine Frau die an einem Tisch Kaffee trinkt
Ein Gewürz und Hülsenfrüchte in zwei Schüsseln
Eine Frau trinkt Kaffee aus einer Tasse, während sie vor einem SiLine HG TS27-Kaffeeautomat steht.
Eine gefüllte Kaffeetasse
Eine Frau die an einem Tisch Kaffee trinkt
Eine Frau die an einem Tisch Kaffee trinkt
Ein Gewürz und Hülsenfrüchte in zwei Schüsseln
Ein Gewürz und Hülsenfrüchte in zwei Schüsseln
Eine Frau trinkt Kaffee aus einer Tasse, während sie vor einem SiLine HG TS27-Kaffeeautomat steht.
Eine Frau trinkt Kaffee aus einer Tasse, während sie vor einem SiLine HG TS27-Kaffeeautomat steht.
Eine gefüllte Kaffeetasse
Eine gefüllte Kaffeetasse

Aesthetically pleasing

With its easy handling and operation, the SiLine® HG TS27 appeals to all of the senses. The full-surface glass-fronted touch Display ensures hygiene is paramount.

The modern, appealing SiLine®-design enables the SiLine® HG TS27 to integrate seamlessly into the SiLine® line of machines.

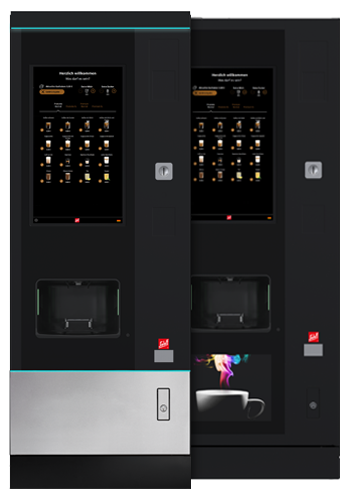

A picture of the SiLine HG TS7 and the SiLine HG TS7 Trend

SiLine® HG TS27 variants

Basis
✕
Basis
Basis
Basis

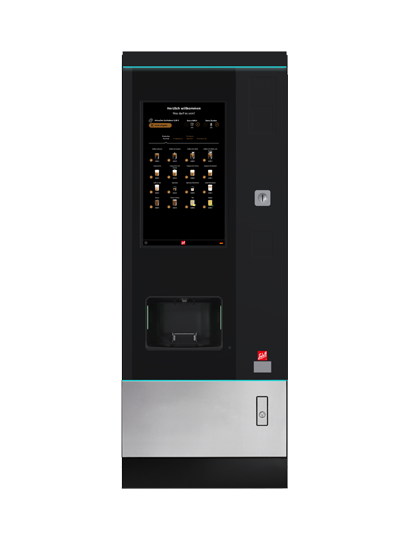

General information

  • Ease to operate using 27“ touchscreen behind full-surface glass front
  • Product descriptions possible for each selection
  • Presentation of consumer information such as ingredients, allergens or additional information
  • Large, open dispense outlet with optional RGB-user prompting
  • Dry sugar and stirrers
  • Innovative instant containers with SiTwist'n-Lock system
  • Configurable advertising space or Slideshow area for advertising videos and images
Download pdf
PDF download

Dimensions:1,830 x 700 x 755 mm (height x width x depth)*
Weight:approx. 210 kg
Cup capacity:can dispense up to 180 cups per hour (varies depending on product and setting)
Electrical data:220 - 230 V / 50/60 Hz / min. 10 A
Power:2,3 kW
Water connection:John Guest

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Design panel

  • Design VA = Lower design panel made from stainless steel
  • Design RA = Lower design panel RAL painted

Housing colours

  • Jet black (RAL 9005)

Optional:
The standard design VA can be added with the design package A.
Design RA can be complemented with Design package A.


Design package A includes:

  • LED decoration stripes


All design variants can be found in the brochure.

Basis
✕
Basis
Basis
Basis

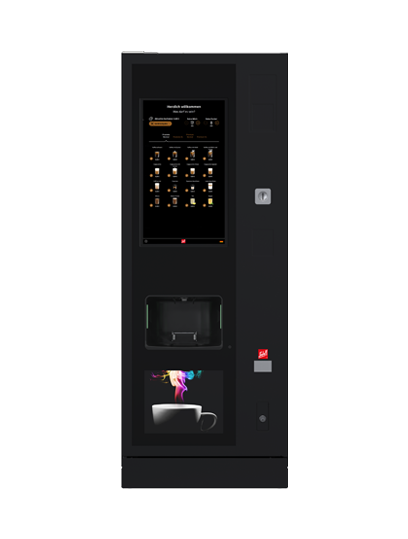

General information

  • Fits perfectly into a SiVend-Line
  • The "Trend" variant features an additional advertising Panel
  • Ease to operate using 27“ touchscreen behind full-surface glass front
  • Product descriptions possible for each selection
  • Presentation of consumer information such as ingredients, allergens or additional information
  • Large, open dispense outlet with optional RGB-user prompting
  • Dry sugar and stirrers
  • Innovative instant containers with SiTwist'n-Lock System
Download pdf
PDF download

Dimensions:1,830 x 700 x 755 mm (height x width x depth)*
Weight:approx. 210 kg
Cup capacity:can dispense up to 180 cups per hour (varies depending on product and setting)
Electrical data:220 - 230 V / 50/60 Hz / min. 10 A
Power:2,3 kW
Water connection:John Guest

*Deviations in the housing dimensions are possible due to add-on parts and accessories.

Front foot plate

  • RB = Lower design panel RAL painted

Housing colours

  • Jet black (RAL 9005)
  • White aluminum (RAL 9006)
  • Pure white (RAL 9010)

Design

  • additionally lower advertising panel

All design variants can be found in the brochure.

Talent and technology

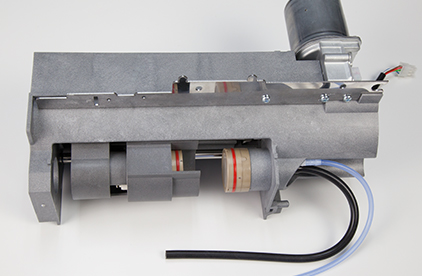

Espresso-Brewer

Espresso-Brewer

Espresso-Brewer

  • High-Tech-Peek brewer
  • Coffee portions from 6-14 g
  • Insulated stainless steel brewing chamber
  • Durable, hydraulically inflated brewer seals
  • Double press
  • Microfilter – crema filter
  • Freely adjustable contact pressure and squeeze pressure
  • Sielaff‘s pre-infusion technology – adjustable to suit every drink

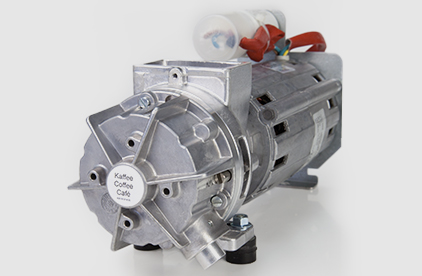

Grinder

Grinder

Grinder

  • High performance 65 mm diameter grinding discs made from tempered steel
  • Easily adjustable grind from espresso to French Press
  • Thermal monitoring of damage caused by foreign particles
  • Transfer of ground beans via a funnel straight from the grinder into the brewer

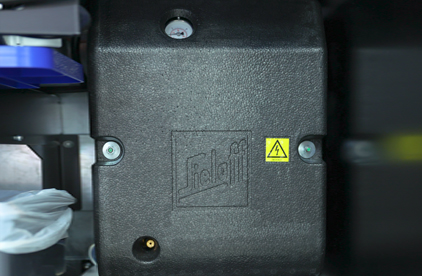

Hot water system

Hot water system

Hot water system

  • Innovative water system. The temperature can be adjusted for each product and component product
  • 2.0 kW boiler, plus additional heating depending on the flow rate
  • 230 V vane pump
  • Output 100 l/hr
  • Electronically monitored water quantity dispense
  • All water carrying components are insulated against heat loss

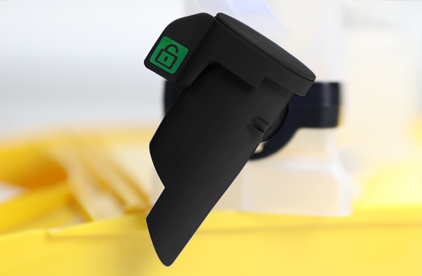

Instant product container

Instant product container

Instant product container

  • Instant product containers are a uniform size: 5 litres
  • Ingenious twist cap SiTwist‘n Lock with coloured marking to indicate the individual
    positions: open / closed
  • Containers are filled in the machine, no need to remove
  • Ergonomic filling process, simply tilt the individual instant product container forwards

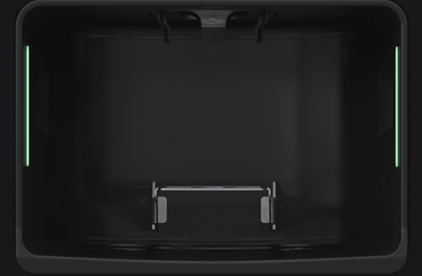

Dispense outlet

Dispense outlet

Dispense outlet

  • Large, open dispense outlet with light barrier and optional RGB-user prompting
  • Foldable cup table
  • Suitable for individual cup or coffee pot up to a height of:
    - Max. 110 mm using the cup table
    - Max. 170 mm with the cup table folded up
  • Adjustable cup catchers with two different cup mechanisms retain the cups securely in the removal position

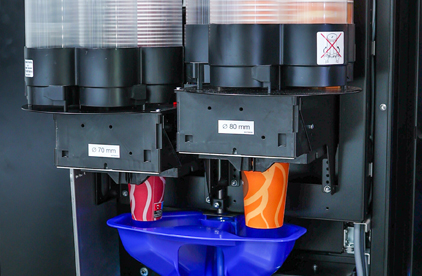

BAM cup Dispenser mechanism

BAM cup Dispenser mechanism

BAM cup Dispenser mechanism

  • The number of cup dispenser mechanisms is freely configurable
  • No cup dispenser mechanism (default), when own cup is used
  • Optional:
    - One cup dispenser mechanism for 70 mm or 80 mm
    - Two identical cup dispenser mechanisms
    - Or two cup dispenser mechanisms in different sizes (70 mm and 80 mm)
  • Up to 1,200 cup capacity
  • Selection-based programming of the respective cup dispenser mechanism
  • Different cup prices can be programmed
  • Different cup types (plastic, paper, reusable)
